Hot chamber furnacePosition: Home > Products > Magnesium alloy furnace > Hot chamber furnace

< >
  • DMH hot chamber furnace

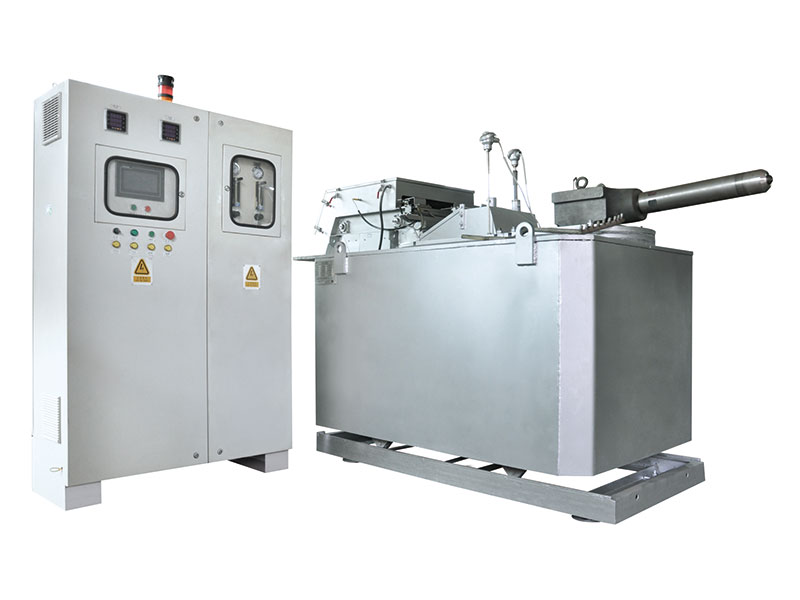

DMH hot chamber furnace

Structural system:

1) The concrete made of special composite steel plate does not pollute the magnesium liquid, has anti-corrosion structure inside, and has long service life.

2) 1.2888 material manufacturing material pot and other spare parts, long service life

3) Using a radiant tube or other heating method, the heater can be quickly replaced

4) Stainless steel casing and panel, corrosion resistant, high temperature resistant

5) Imported thermocouple, accurate temperature control and high service life

6) Temperature control static ± 1 ° C, dynamic ± 3 ° C

7) Preheater adopts clamping mechanism to make liquid level control stable and accurate feeding (patent: ZL201420137471.2)

8) Preheating machine has low energy consumption and good preheating effect

Feedback

Details

Technical Parameters

Project type

Unit

DMH80

DMH125

DMH200

DMH315

DMH500

Furnace size

mm

1200*650*1000

1450*850*1020

1600*900*1020

1650*900*1020

1650*900*1020

Rated capacity

Kg

200

300

300

500

500

Melting rate

Kg/h

80

120

120

220

220

Crucible structure

.

Signal room



Power


380-420V/50-60Hz/Three-phase Five-wire

Rated power

KW

30

45

45

75

75

Rated current

A

45

70

70

110

110

Highest  Furnace work temperature

850



Highest work  temperature of magnesium liquid

710



Gas supply temperature

350

(max.)

Protection gas flow(max.)

L/min

10

10

10

25

25

Inside hole of material pot

mm

55

65

70

80

85

DIN45635-01-K1.2   noise

dB(A)

<85



Furnace weight

kg

1200

1500

1600

2500

2500

Matching casting machine

T

60-88

100-150

160-200

300-400

500-600

Special note: The company reserves the right of final interpretation of the above product pictures and parameters!
